*Voltage: DC 12V/24V
*Rated Charge Current: 30A
*Max Input: <50V
*12V System Charging Voltage: 13.7V(B01), 12.6V(B02), 14.6V(B03)
*24V System Charging Voltage: 24.7V(B01), 25.2V(B02), 29.2V(B03)
*12V System Low Voltage Disconnect:10.7V(B01), 9V(B02), 10V(B03)
Note:
1.Make sure your battery has enough voltage for the controller to recognize the battery before first installation.
2. The regulator is only suitable for lead acid batteries: B01 SEALED, B02 GEL, B03 FLOOD, not for nickel hydride, lithium, ions, or other batteries. Let the children keeps far away from the storage battery and the controller.
Caution:

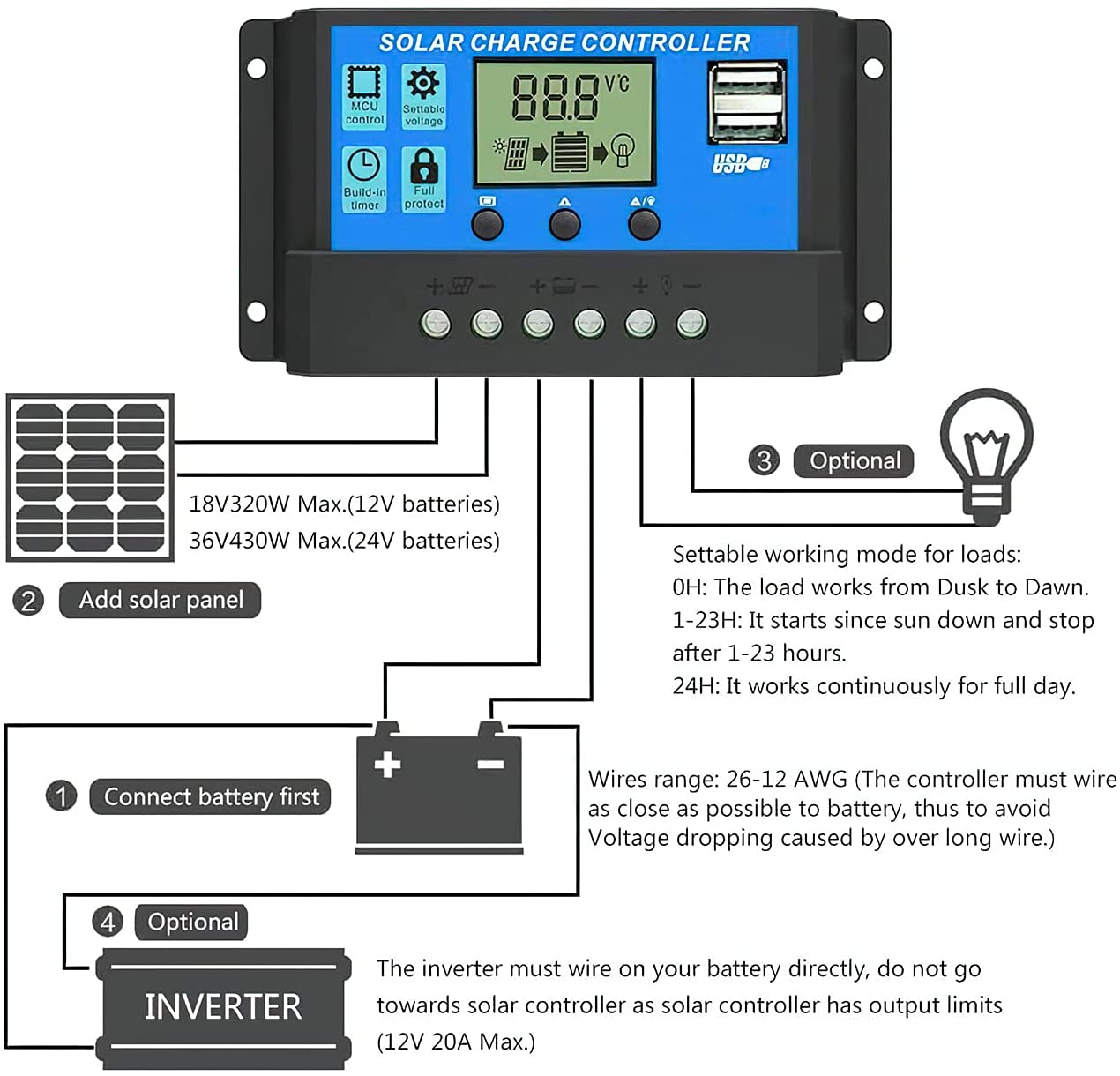

1.Controller should connect the battery first, and then connect the solar panel,and finally the load! The disassembly sequence is contrary to the wiring order!
2. Please keep it in cool and well ventilated place to maintain good heat dissipation, the temperature outside might go up to 60-75°C which will lead to the blank of the LCD screen.
*24V System Low Voltage Disconnect:21.4V(B01), 18V(B02), 20V(B03)
*12V System Low Voltage Reconnect:12.6V(B01), 10.5V(B02), 12V(B03)
*24V System Low Voltage Reconnect:25.2V(B01), 21V(B02), 24V(B03)
Easy to setup and use! A great value and controller that fits just about anywhere. Perfect for an rv with limited mounting locations.
