What Is MPPT Charge Controller?

If you’ve spent time around solar setups, you’ve probably heard the phrase “MPPT charge controller.”

It sounds technical, almost like something that belongs in a lab.

So, what exactly is an MPPT charge controller, and why does everyone keep talking about it?

What is Maximum Power Point Tracking?

MPPT stands for Maximum Power Point Tracking.

That name might sound like marketing jargon, but it’s really just a descriptive phrase for what the controller does.

Solar panels produce different amounts of power depending on sunlight, temperature, and angle.

There’s always a point at which they’re producing the highest usable power output—this is the "maximum power point."

How Does the MPPT Charge Controller Work?

Solar panels have a voltage-current curve—basically a graph showing how much power they produce at different voltages.

The maximum power point is the peak of that curve.

An MPPT controller constantly reads the panel’s voltage and current, finds the peak, and then converts it to a battery-friendly voltage while preserving as much energy as possible.

One of the coolest tricks MPPT controllers do is voltage conversion. Solar panels usually operate at higher voltages than batteries.

Let’s say your panel outputs 36 volts and your battery is 12 volts.

A naïve system would just dump that energy in, wasting a ton of potential power.

MPPT controllers step in, converting the excess voltage into current, so more power actually reaches your battery.

Why We Need a Charge Controller

When a solar panel collects sunlight, it converts that radiant energy into electrical power.

But here’s the thing—not all that power can be directly fed into a battery.

Batteries are picky; they want steady, controlled charging.

Too much voltage or current can harm them, shorten their lifespan, or even cause overheating.

So there needs to be a “traffic controller” between the solar panel and the battery. That’s the charge controller.

Now, there are two main types of charge controllers: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking).

The Difference Between MPPT and PWM Controllers

Before MPPT (Maximum Power Point Tracking), PWM (Pulse Width Modulation) controllers were the standard.

PWM works like a simple on-and-off switch—when the battery gets close to full, it pulses the current to prevent overcharging.

It’s basic, somewhat reliable, and still used in very small systems.

But PWM doesn’t adjust voltage differences.

If your solar panel produces 18 volts and your battery only accepts 12 volts, PWM simply chops the extra voltage off.

It’s like paying for a full meal and then leaving half of it untouched on the plate.

MPPT, on the other hand, converts that extra voltage into more usable current.

Instead of wasting that difference, it sends it into the battery as additional charging power.

On average, MPPT systems are 20–30% more efficient than PWM controllers, sometimes even more under the right conditions.

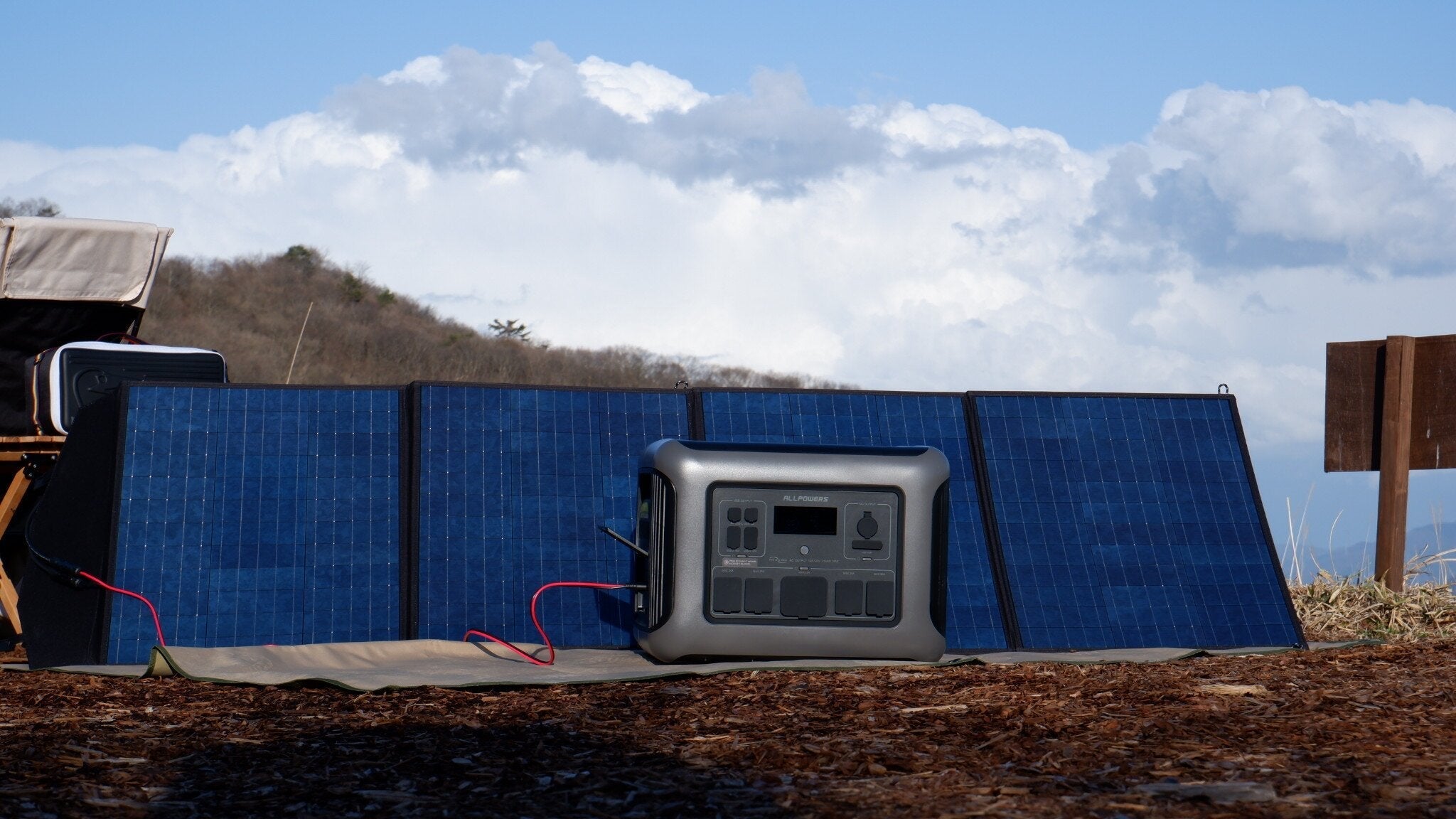

Why MPPT Is Especially Useful for Portable Power Stations

Portable power stations don’t have unlimited solar input.

Usually, you're working with foldable panels, limited daylight hours, maybe a bit of shade from trees or tents.

You need every bit of usable energy you can get.

A good MPPT controller inside a power station means, solar charging becomes noticeably faster and more reliable.

Furthermore, MPPT technology excels in variable conditions, ensuring you capture more usable energy even during cloudy or inconsistent weather.

Crucially, by precisely managing charge voltage and current, the MPPT controller ensures superior battery health over the long term.

When MPPT Really Makes a Difference

Not all setups scream for MPPT controllers.

If you’re running a small, low-voltage panel for a tiny battery, PWM might do the trick.

But once your system scales up—larger panels, higher voltage, multiple batteries—that’s when MPPT shines.

A PWM controller will capture some energy, but an MPPT can actually extract up to 30% more power in such conditions.

That’s a serious difference when you’re relying on solar to power lights, a fridge, or even your portable power station.

Common Misconceptions About MPPT

People often ask, “If MPPT is so great, why don’t all systems use it?” The answer usually comes down to cost and simplicity.

PWM controllers are cheaper and easier to wire. For tiny, low-power setups, the difference may not justify the added expense.

But for most home, RV, or serious off-grid systems, MPPT’s efficiency gain pays off quickly—sometimes within a year of daily use.

Another misconception is that MPPT will make a panel magically produce more energy than the sun provides.

Not quite. It doesn’t create energy; it just harvests it more effectively, squeezing out the maximum potential from each photon hitting your panel.

Conclusion

So, what is an MPPT charge controller? It's the smart brain that ensures your solar panels perform to their potential.

If you plan to rely on solar—even occasionally—it’s worth choosing systems that include MPPT.
